Light weight P5 HD Transparent led screens with 5500nits brightness

Product Categories

Shenzhen Bako Vision Technology Co., Ltd

Contact Now

Name: Light weight P5 HD Transparent led screens with 5500nits brightness
Brand: Bako Vision
Price: 1 USD

Brand Name : Bako Vision

Model Number : P5

Certification : CE, RoHs, CCC

Place of Origin : Shenzhen China

MOQ : 1sqm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000sqm

Delivery Time : about 15-20 days

Packaging Details : Wooden box

Pitch : 5mm(H), 8mm(V)

Panel size : 960x640mm

Module size : 480*320mm

Driver IC : ICN2038S

Power supply : Meanwell

Controller : Linsn/Nova

Screen dimension : Customized

Tube chip color : Full Color

Usage : Indoor

Display function : Video,Animation,pictures

Warranty : 2 Years

Contact Now

Light weight P5 HD Transparent led screens with 5500nits brightness

P5 HD Transparent led screens Features:

1. Light-weighted(only about 13kg per sqm);

2. Any irregular shap screen archievable;

3. Easy installation;

4. Up to 5,500 nits brightness;

P5 HD Transparent led screens Parameter:

	BG-5-8
Physical Pitch	5x8mm
Pixel Configuration	SMD1921
Pixel Density	25000pixels/m²
Module Dimensions (WxH)(mm)	480x320
Panel Dimensions (WxH)(mm)	960x640
NO. of Modules Per Panel(WxH)	2x2
Physical Resolution of Module(WxH)	96x40
Physical Resolution of Panel(WxH)	192x80
Panel Material	Aluminum
Single Cabinet Weight	<14kg/m²
Gray Scale	16bit
Colours	281 trillion
Contrast Ratio	2000:01:00
Average Power Consumption	203W/m²
Max. Power Consumption	670W/m²
Operating Temp/Humidity	-10ºC-60ºC/ 10%-60%
Storage Temp/Humidity	-30ºC-60ºC/ 10%-60%
Refresh Rate	>1920Hz
Brightness	>5500 nits
Horizontal Viewing Angle	160°
Vertical Viewing Angle	140°
Expected Lifetime	100,000Hrs
IP Rating(Front/Rear)	IP30
Servicing	Rear
Scan Method	1/6 Scan

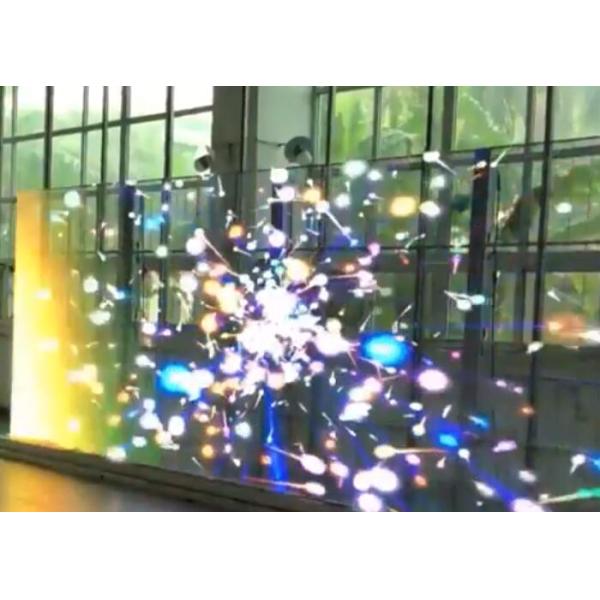

Cases:
